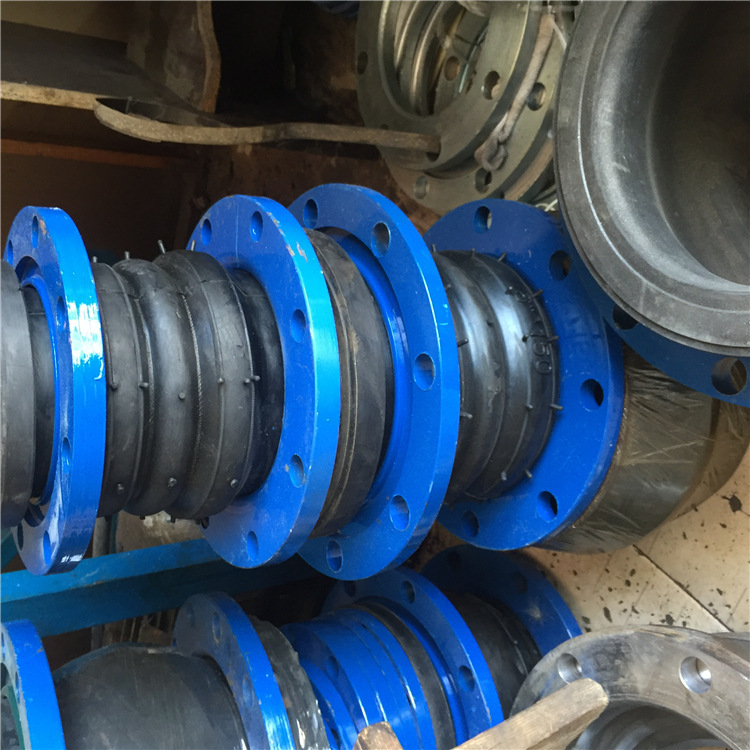

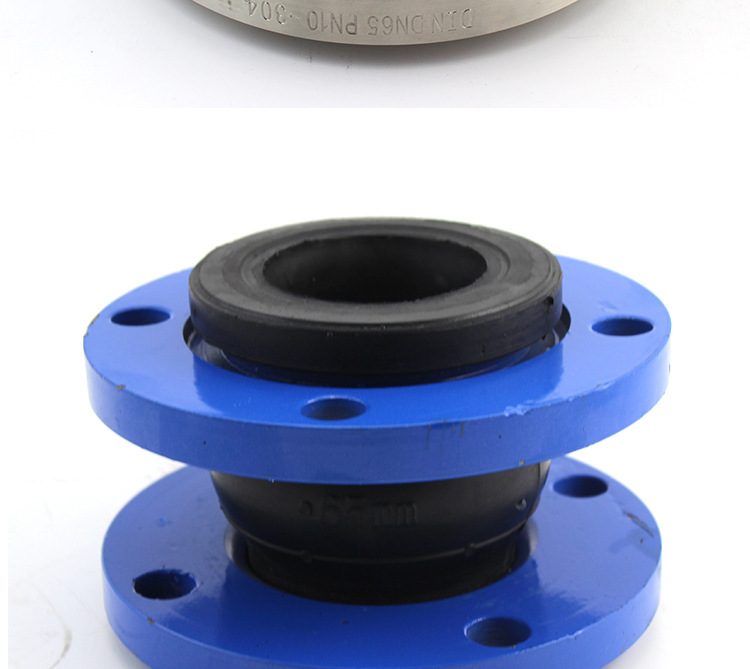

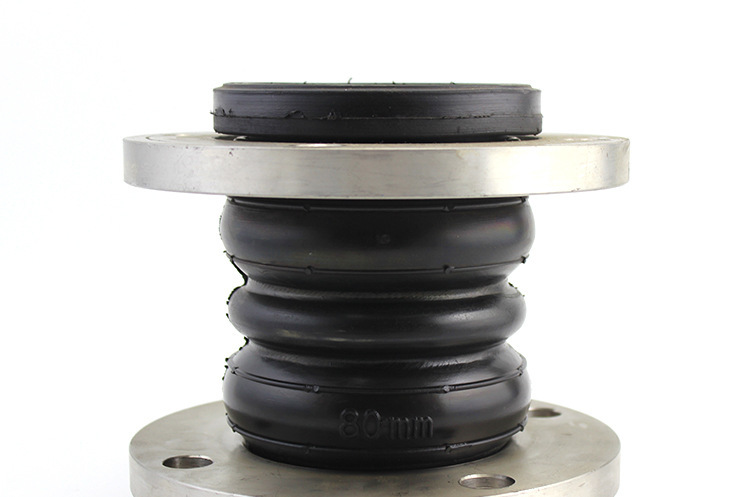

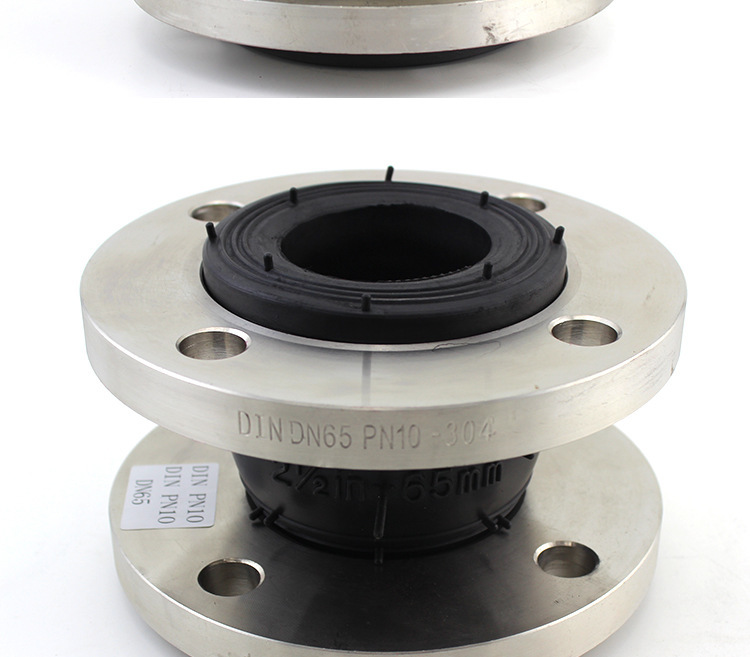

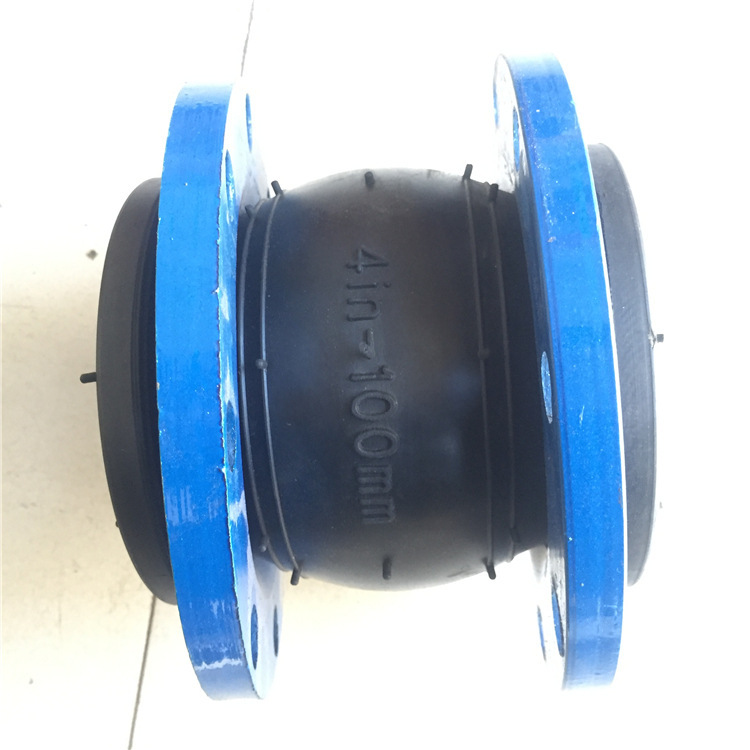

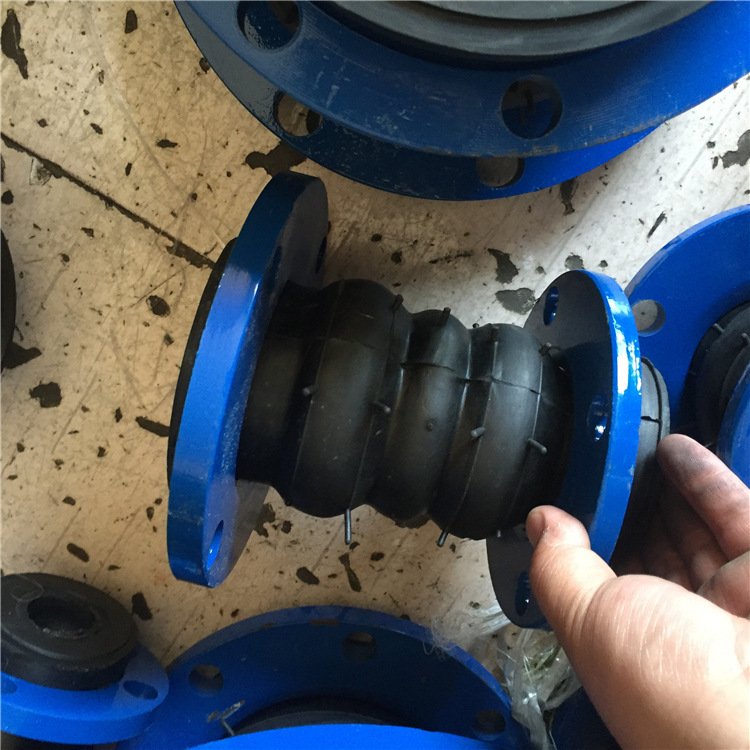

Rubber soft joint

　　Rubber soft joint, commonly known as flexible rubber joint, is a patented product produced by our factory in accordance with relevant international GWB technical standards in 1990. Its products are widely used in water, electricity, chemical industry and ship mooring system. The main performance is high pressure resistance (1.0-6.4MPa), good elasticity (can be axial and lateral angular displacement) and noise reduction (under normal circumstances, Can reduce the structure transmission noise 15-30 dB), light quality, vibration reduction, easy installation, flexible use, easy to disassemble and repair, and has acid resistance, alkali resistance, oil resistance and other characteristics. The shock absorber can be automatically extended to withstand natural changes in weather (-30 degrees -- +80 degrees) during use. Its structural material is impregnated nylon curtain in cloth, 1MPa to ensure that there are 14-16 layers, inside and outside the use of high strength aging resistance polar rubber material, in order to prevent the product in long-term use of natural atrophy and reduce aging rupture, the use of mesh steel wire for multi-body protection. It can replace other telescopic products widely used in power plants, water plants, sewage plants, chemical and metallurgical industries. In the joint inspection, spot check and test conducted by China Architectural Design Institute, the Ministry of Petroleum and Chemical Industry and the Ministry of Metallurgy in 1993, the main technical indicators, working pressure, blasting pressure, vacuum degree, applicable temperature and applicable medium (acid and alkali resistance) have reached the corresponding indicators. The products are designated as "recommended products" and "designated products" in the industry. The main materials of neoprene rubber, natural rubber and EPM rubber are fully qualified through random inspection by the technical supervision department of Zhengzhou City and the technical supervision department of Gongyi City. The use of this product has no pollution to human beings and no side effects, so it has been rated as "high-quality products" and "trustworthy products" in provinces and cities for years.

Main material：

Serial number NO	position	material
1	subject	Polar rubber
2	lining	Nylon cord fabric
3	skeleton	Rigid steel wire
4	flange	Mild steel

Technical condition：

Model number	JGD(Ⅰ)	JGD(Ⅱ)	JGD(Ⅲ)
project
Working pressure MPa(kg.f/cm2)		1.6	1.0	0.6
Burst pressure MPa(kg.f/cm2)		4.8	3.0	1.8
Vacuum degree in KPa(mmHg)		100(750)	86.7(650)	53.3(400)
Applicable temperature ℃		-20 ~ +115(special reachable -30 ~ +250)
Applicable medium		Air, compressed air, water, seawater, hot water, oil, acid and alkali and other chemical substances

Model JGD(Ⅰ) JGD(Ⅱ) JGD(Ⅲ) Project Working Pressure MPa(kg.f/cm2) 1.6 1.0 0.6 Blasting Pressure MPa(kg.f/cm2) 4.8 3.0 1.8 Vacuum degree KPa(mmHg) 100(750) Applicable temperature -20 ~ +115(special up to -30 ~ +250) Applicable medium air, compressed air, water, seawater, hot water, oil, acid and alkali and other chemical substances
