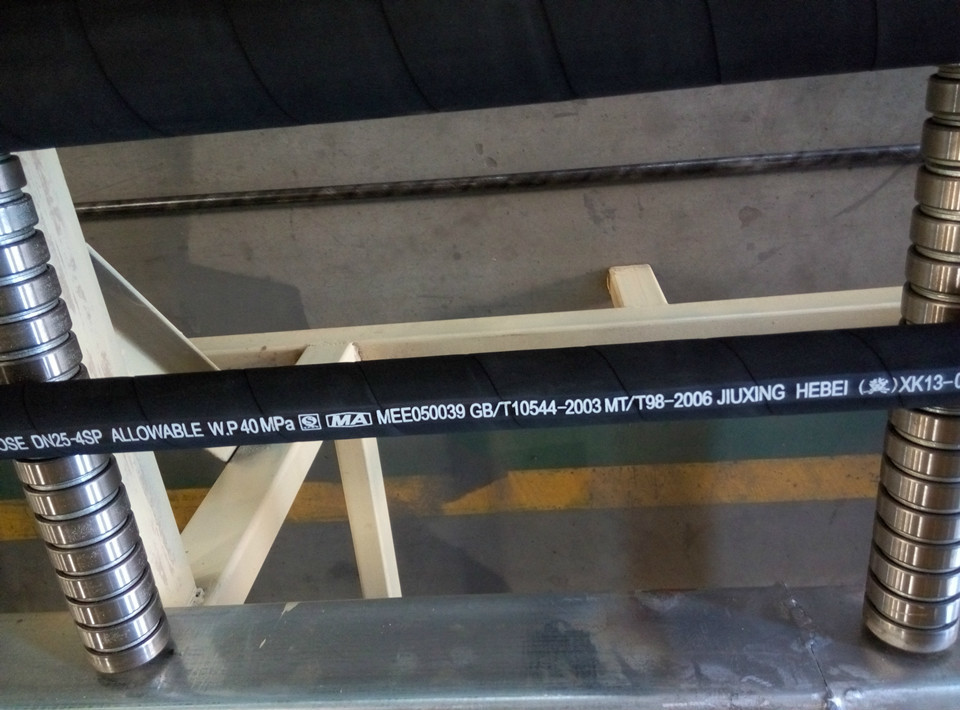

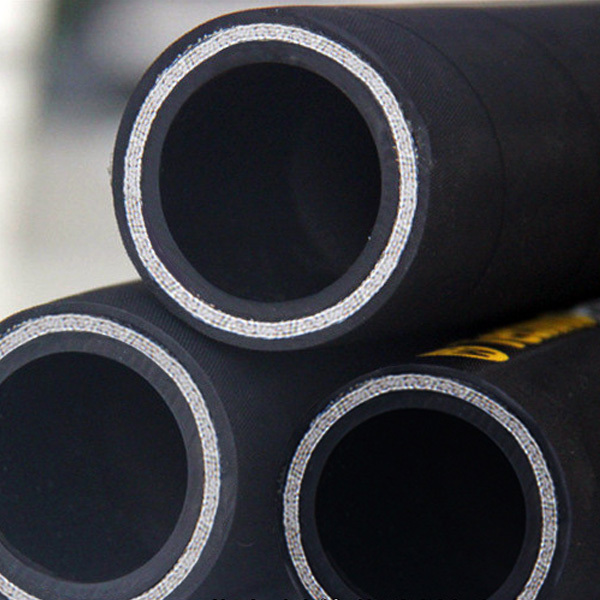

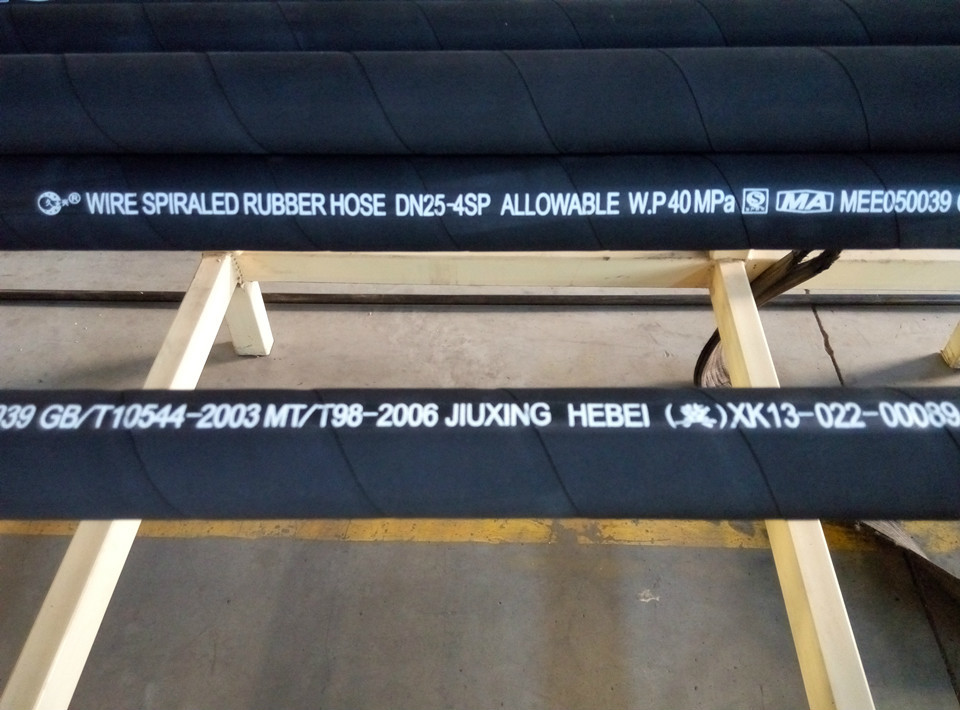

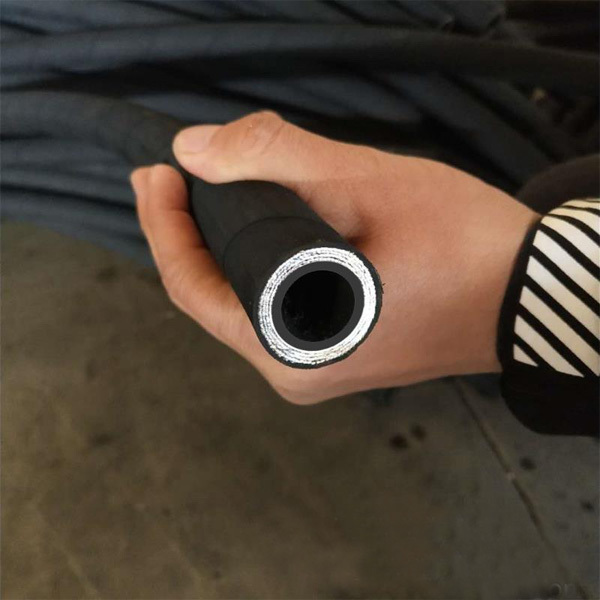

High pressure wire wound hose
Structure: The hose is composed of inner rubber layer, middle rubber layer, two and four layers of wire winding layer and outer rubber layer. Application: suitable for conveying hydraulic fluid such as alcohol, hydraulic oil, fuel oil, lubricating oil, water, emulsion, hydrocarbon, etc., in order to achieve high pressure fluid transmission or hydraulic power transmission. Operating temperature: -40℃ -- +100℃
Classification:
Key words:
High pressure wire wound hose
hotline:
High pressure wire wound hose
The previous one:
Next:
Related products
Outer braided 304 stainless steel armored hose assembly
Armored hose are mainly: (1) armored air hose: at normal temperature for conveying high pressure compressed air or other inert gases with armored steam hose for conveying temperature below 150℃ steam or superhot water, suitable for poor working conditions change, high safety requirements of the case. (2) armored steam hose: for conveying steam or superhot water with temperature below 150℃, suitable for the working environment with large changes in poor conditions and high safety requirements; (3) armored oil delivery hose: for transporting gasoline, kerosene, diesel oil, oil and other mineral oils in the temperature range of -14℃ ~ +40℃, suitable for high pressure, large changes in conditions, high requirements for safety production. (4) armoured transport dilute acid
Low pressure hose products include water hose, compressed air hose, oil suction hose, steam hose, sand blasting hose, food hose, oxygen blowing hose and a variety of special-shaped pipes, widely used in machinery, chemical, petroleum, metallurgy, food and other industries.
High pressure wire braided hose
Structure: The hose is composed of inner rubber layer, middle rubber layer, Ⅰ, Ⅱ, Ⅲ layer of wire braided layer and outer rubber layer. Application: suitable for conveying hydraulic fluid such as alcohol, hydraulic oil, fuel oil, lubricating oil, water, emulsion, hydrocarbon, etc., in order to achieve high pressure fluid transmission or hydraulic power transmission. Operating temperature: -40℃ -- +100℃
High pressure steel wire braided Hose (three layers)
It is mainly composed of liquid resistant synthetic rubber inner layer, medium rubber layer, Ⅰ, Ⅱ, Ⅲ steel wire braided layer, weather resistant synthetic rubber outer layer. The inner rubber layer has the function of making the conveying medium withstand pressure and protecting the steel wire from erosion, the outer rubber layer protects the steel wire from damage, and the steel wire layer is the skeleton material, which plays an enhanced role.
American standard sae foreign trade high pressure hose
American standard sae foreign trade high pressure hose
High temperature and high pressure hose is mainly excessive pressure steam. Its material is composed of EPDM rubber and steel wire, which is widely used in industry. Ethylene Propylene EPDM (Ethylene Propylene Diene Monomer) is a copolymer of ethylene, propylene and a few unconjugated diolefins. It is expressed in ethylene propylene (EPDM) because the main chain of ethylene propylene diene Monomer is composed of chemically stable saturated hydrocarbons and only contains unsaturated double bonds in the side chain. Therefore, its ozone resistance, heat resistance, weather resistance and other excellent aging resistance, can be widely used in automotive parts, building waterproof materials, wire and cable sheathing, heat-resistant rubber hose, tape, automotive seals and other fields.
