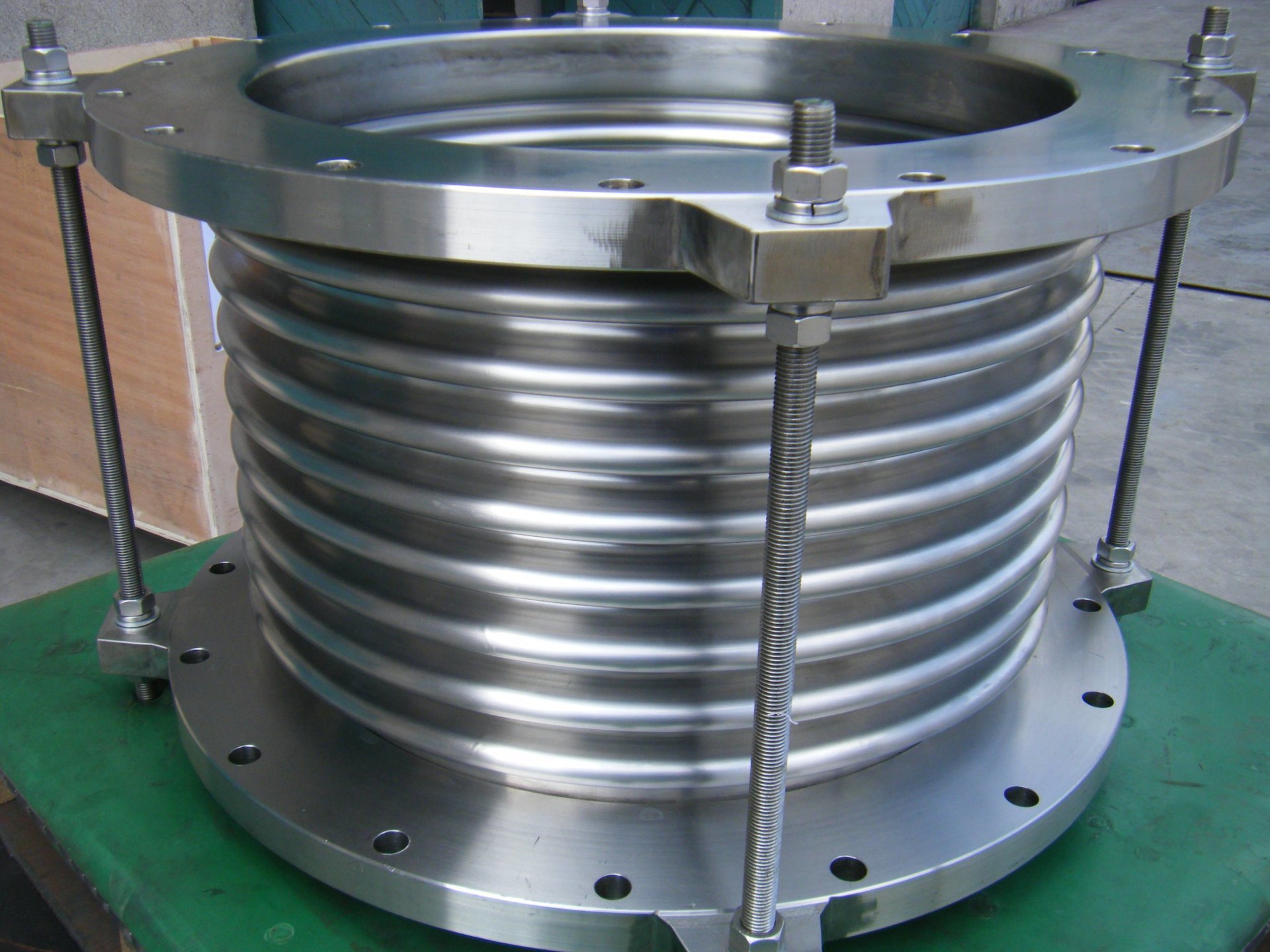

Compensator - Metal soft connection

Metal soft connection (compensator) products with its unique characteristics and reliable quality are more and more widely used in many fields of ventilation duct system. It has a wide range of temperature resistance, high pressure resistance, strong corrosion resistance, good flame retardant performance, sound absorption and shock absorption, good flexibility and many other advantages. Compared with the traditional metal bellows, it avoids the hard force transfer caused by the connection of metal parts, eliminates the pipeline vibration, solves the problem of the compensation amount of thermal expansion and cold contraction of the fan and the inevitable displacement of metal parts. And can play a protective role to the fan in the accident. And in transportation, installation, cost, maintenance and many other aspects are far better than metal bellows. It is the replacement product of traditional metal bellows.

Classification:

Compensator

Key words:

compensator

hotline:

0318-4308327

Related products

Outer braided 304 stainless steel armored hose assembly

Armored hose are mainly: (1) armored air hose: at normal temperature for conveying high pressure compressed air or other inert gases with armored steam hose for conveying temperature below 150℃ steam or superhot water, suitable for poor working conditions change, high safety requirements of the case. (2) armored steam hose: for conveying steam or superhot water with temperature below 150℃, suitable for the working environment with large changes in poor conditions and high safety requirements; (3) armored oil delivery hose: for transporting gasoline, kerosene, diesel oil, oil and other mineral oils in the temperature range of -14℃ ~ +40℃, suitable for high pressure, large changes in conditions, high requirements for safety production. (4) armoured transport dilute acid

Clip cloth hose 2

Low pressure hose products include water hose, compressed air hose, oil suction hose, steam hose, sand blasting hose, food hose, oxygen blowing hose and a variety of special-shaped pipes, widely used in machinery, chemical, petroleum, metallurgy, food and other industries.

High pressure wire braided hose

Structure: The hose is composed of inner rubber layer, middle rubber layer, Ⅰ, Ⅱ, Ⅲ layer of wire braided layer and outer rubber layer. Application: suitable for conveying hydraulic fluid such as alcohol, hydraulic oil, fuel oil, lubricating oil, water, emulsion, hydrocarbon, etc., in order to achieve high pressure fluid transmission or hydraulic power transmission. Operating temperature: -40℃ -- +100℃

High pressure steel wire braided Hose (three layers)

It is mainly composed of liquid resistant synthetic rubber inner layer, medium rubber layer, Ⅰ, Ⅱ, Ⅲ steel wire braided layer, weather resistant synthetic rubber outer layer. The inner rubber layer has the function of making the conveying medium withstand pressure and protecting the steel wire from erosion, the outer rubber layer protects the steel wire from damage, and the steel wire layer is the skeleton material, which plays an enhanced role.

American standard sae foreign trade high pressure hose

Smooth high pressure hose

High pressure steam hose

High temperature and high pressure hose is mainly excessive pressure steam. Its material is composed of EPDM rubber and steel wire, which is widely used in industry. Ethylene Propylene EPDM (Ethylene Propylene Diene Monomer) is a copolymer of ethylene, propylene and a few unconjugated diolefins. It is expressed in ethylene propylene (EPDM) because the main chain of ethylene propylene diene Monomer is composed of chemically stable saturated hydrocarbons and only contains unsaturated double bonds in the side chain. Therefore, its ozone resistance, heat resistance, weather resistance and other excellent aging resistance, can be widely used in automotive parts, building waterproof materials, wire and cable sheathing, heat-resistant rubber hose, tape, automotive seals and other fields.

High pressure wire wound hose

Structure: The hose is composed of inner rubber layer, middle rubber layer, two and four layers of wire winding layer and outer rubber layer. Application: suitable for conveying hydraulic fluid such as alcohol, hydraulic oil, fuel oil, lubricating oil, water, emulsion, hydrocarbon, etc., in order to achieve high pressure fluid transmission or hydraulic power transmission. Operating temperature: -40℃ -- +100℃

Product message

We are a high-tech company engaged in research, development, production and sales. We have obtained API ISO9001:2008, API Spec Q1, ISO/TS29001 and API Spec 7K certifications. The safety mark certificate of mining products issued by the National Safety Mark Center of Mining Products.

Home
About Us
News
- Corporate News
- Trade News
Products
Strength
- Factory environment
- Equipment
Q&A
Contact Us
CN

body,input,textarea { font-family: Roboto, Arial, sans-serif; } span { word-wrap: break-word !important; word-break: keep-all !important; } p { word-wrap: break-word !important; word-break: keep-all !important; } div { word-wrap: break-word !important; word-break: keep-all !important; }

East Zone, Jingxian Development Zone, Hengshui City, Hebei Province

Customer service wechat

Temperature resistance	-50°C-1000°C	Working pressure	≤100000Pa
Flame retardant property	GB8624A	airtightness	excellent
Product thickness	2mm-20mm	Aging resistance	≥10 years
Alkali resistance	excellent	Acid resistance	excellent
Service life	2-8 years (according to the requirements of specific working conditions)
